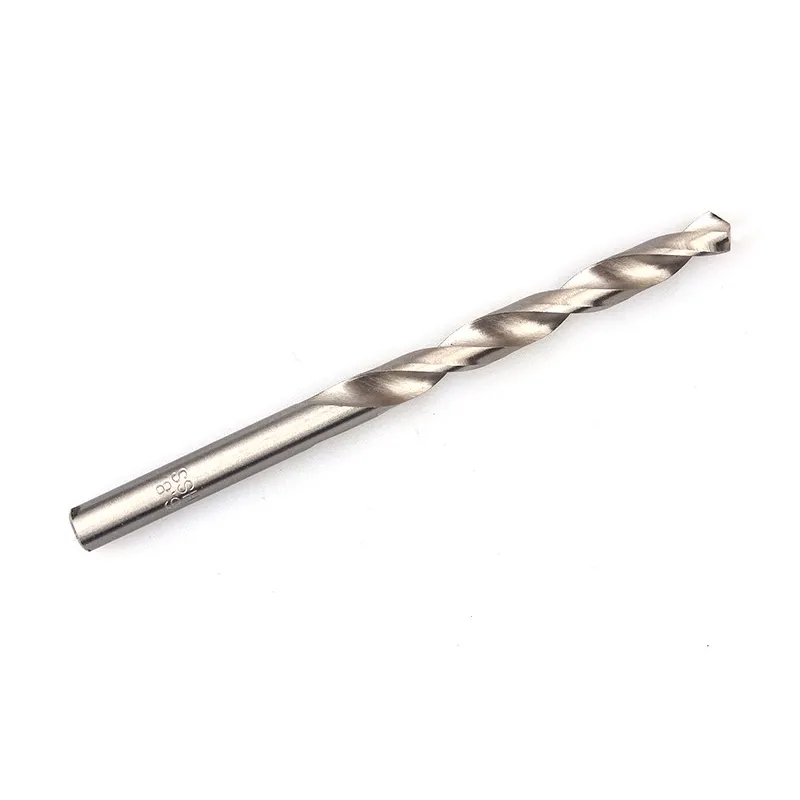

Metal Drill Bits
Item No.: TD1003
Diameter: Φ1/64''-11/16''
Material: HSS (High Speed Steel)
Process: Rolled / Ground
Color Options: Black, Grey, Bright
Specification
The following specifications are provided for your reference. OEM and ODM services are available.
| Size (d) | Flute Length (l) | Overall Length (L) | Size (d) | Flute Length (l) | Overall Length (L) | Size (d) | Flute Length (l) | Overall Length (L) | Size (d) | Flute Length (l) | Overall Length (L) |
| 1/64" | 3/16" | 3/4" | 3/16" | 2-5/16" | 3-1/2" | 23/64" | 3-1/2" | 4-7/8" | 17/32" | 4-13/16" | 6-5/8" |
| 1/32" | 1/2" | 1-3/8" | 13/64" | 2-7/16" | 3-5/8" | 3/8" | 3-5/8" | 5" | 35/64" | 4-13/16" | 6-5/8" |
| 3/64" | 3/4" | 1-3/4" | 7/32" | 2-1/2" | 3-3/4" | 25/64" | 3-3/4" | 5-1/8" | 9/16" | 4-13/16" | 6-5/8" |
| 1/16" | 7/8" | 1-7/8" | 15/64" | 2-5/8" | 3-7/8" | 13/32" | 3-7/8" | 5-1/4" | 37/64" | 5-3/16" | 7-1/8" |
| 5/64" | 1" | 2" | 1/4" | 2-3/4" | 4" | 27/64" | 3-15/16" | 5-3/8" | 19/32" | 5-3/16" | 7-1/8" |
| 3/32" | 1-1/4" | 2-1/4" | 17/64" | 2-7/8" | 4-1/8" | 7/16" | 4-1/16" | 5-1/2" | 39/64" | 5-3/16" | 7-1/8" |
| 7/64" | 1-1/2" | 2-5/8" | 9/32" | 2-15/16" | 4-1/4" | 29/64" | 4-3/16" | 5-5/8" | 5/8" | 5-3/16" | 7-1/8" |
| 1/8" | 1-5/8" | 2-3/4" | 19/64" | 3-1/16" | 4-3/8" | 15/32" | 4-5/16" | 5-3/4" | 41/64" | 5-3/16" | 7-1/8" |
| 9/64" | 1-3/4" | 2-7/8" | 5/16" | 3-3/16" | 4-1/2" | 31/64" | 4-3/8" | 5-7/8" | 21/32" | 5-3/16" | 7-1/8" |
| 5/32" | 2" | 3-1/8" | 21/64" | 3-5/16" | 4-5/8" | 1/2" | 4-1/2" | 6" | 43/64" | 5-5/8" | 7-5/8" |
| 11/64" | 2-1/8" | 3-1/4" | 11/32" | 3-7/16" | 4-3/4" | 33/64" | 4-13/16" | 6-5/8" | 11/16" | 5-5/8" | 7-5/8" |
