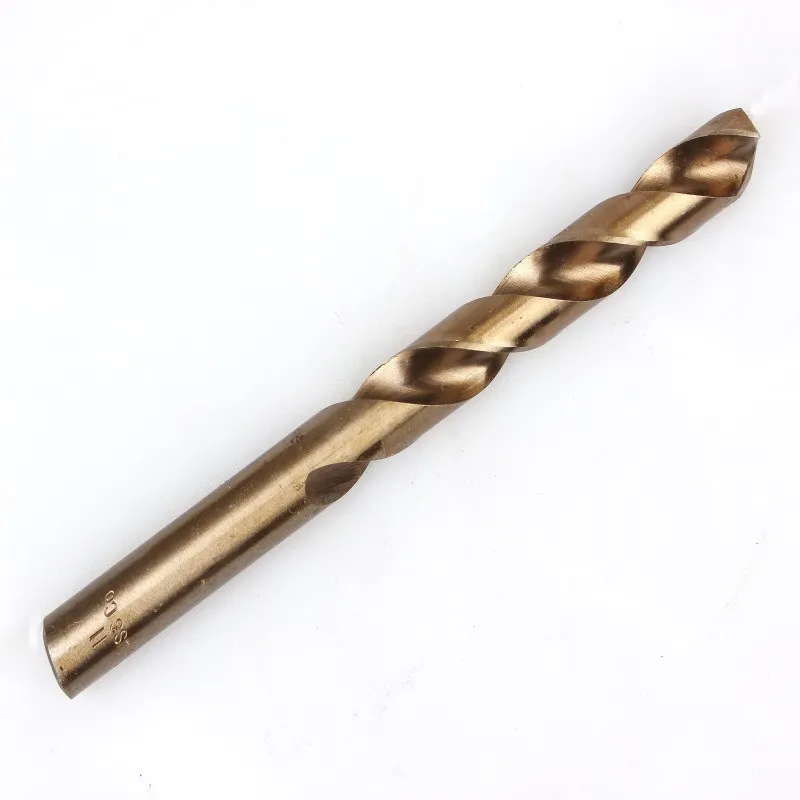

Drill Bit Sets
Item No.: TD1009
Diameter Range: Φ0.3–20 mm
Material: M35 (Cobalt High Speed Steel)
Process: Fully Ground

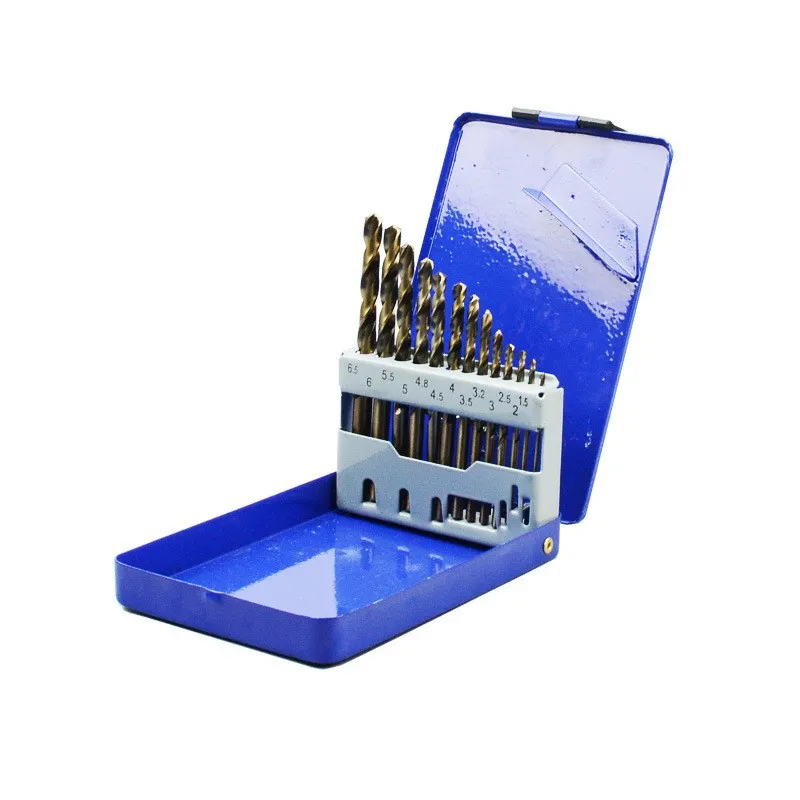

13-Piece Set: Φ1.5–6.5 mm

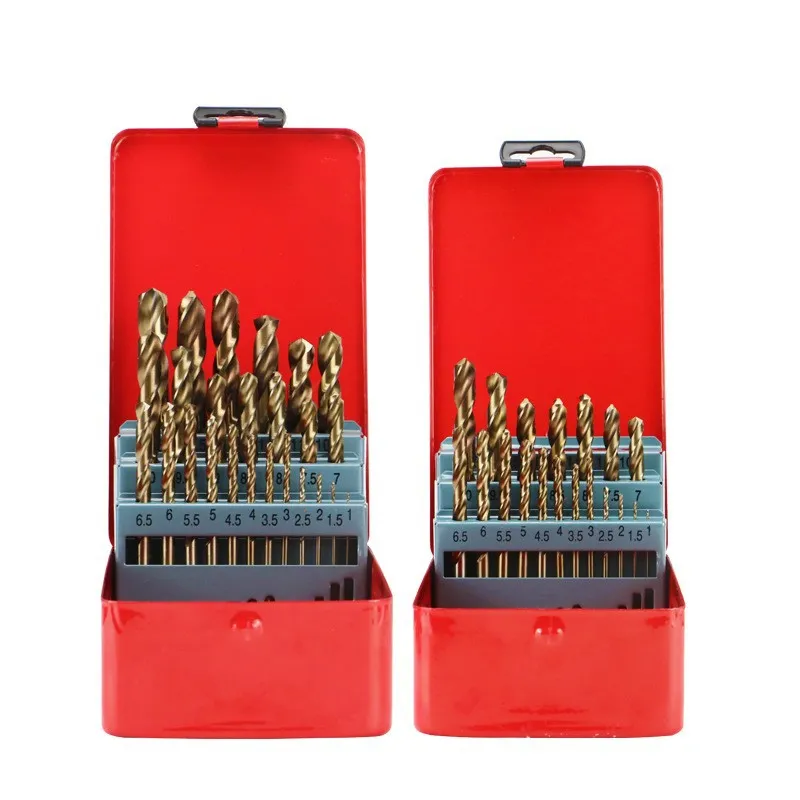

19-Piece Set: Φ1–10 mm

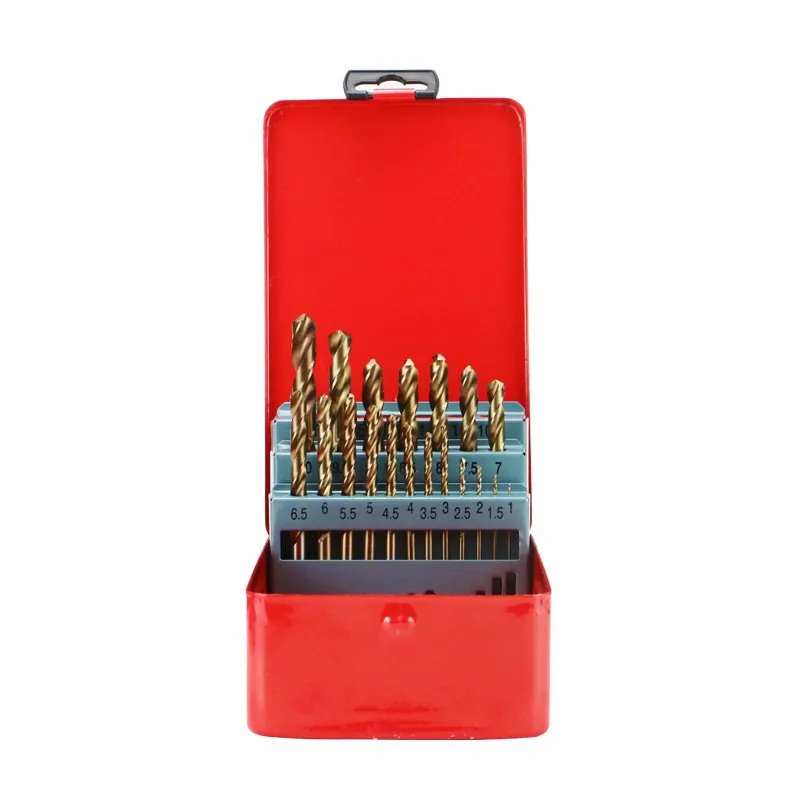

25-Piece Set: Φ1–13 mm
Specification
The following specifications are provided for your reference. OEM and ODM services are available.

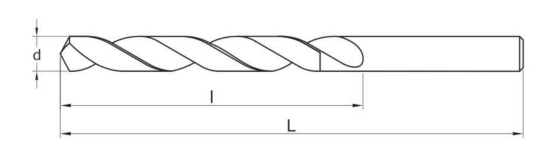

| Size (d) | Flute Length (l) | Overall Length (L) | Size (d) | Flute Length (l) | Overall Length (L) | Size (d) | Flute Length (l) | Overall Length (L) | Size (d) | Flute Length (l) | Overall Length (L) |
| 0.3 | 3 | 19 | 4 | 43 | 75 | 8.2 | 75 | 117 | 12.5 | 101 | 151 |
| 0.4 | 5 | 20 | 4.2 | 43 | 75 | 8.5 | 75 | 117 | 12.7 | 101 | 151 |
| 0.5 | 6 | 22 | 4.5 | 47 | 80 | 8.8 | 81 | 125 | 13 | 101 | 151 |
| 0.6 | 7 | 24 | 4.8 | 52 | 86 | 9 | 81 | 125 | 13.5 | 108 | 160 |
| 0.8 | 10 | 30 | 5 | 52 | 86 | 9.2 | 81 | 125 | 14 | 108 | 160 |
| 1 | 12 | 34 | 5.2 | 52 | 86 | 9.5 | 81 | 125 | 14.5 | 114 | 169 |
| 1.2 | 16 | 38 | 5.5 | 57 | 93 | 9.8 | 87 | 133 | 15 | 114 | 169 |
| 1.5 | 18 | 40 | 5.8 | 57 | 93 | 10 | 87 | 133 | 15.5 | 120 | 178 |
| 1.8 | 22 | 46 | 6 | 57 | 93 | 10.2 | 87 | 133 | 16 | 120 | 178 |
| 2 | 24 | 49 | 6.2 | 63 | 101 | 10.5 | 87 | 133 | 16.5 | 125 | 184 |
| 2.2 | 27 | 53 | 6.5 | 63 | 101 | 10.8 | 94 | 142 | 17 | 125 | 184 |
| 2.5 | 30 | 57 | 6.8 | 69 | 109 | 11 | 94 | 142 | 17.5 | 130 | 191 |
| 2.8 | 33 | 61 | 7 | 69 | 109 | 11.2 | 94 | 142 | 18 | 130 | 191 |
| 3 | 33 | 61 | 7.2 | 69 | 109 | 11.5 | 94 | 142 | 18.5 | 135 | 198 |
| 3.2 | 36 | 65 | 7.5 | 69 | 109 | 11.8 | 94 | 142 | 19 | 135 | 198 |
| 3.5 | 39 | 70 | 7.8 | 75 | 117 | 12 | 101 | 151 | 19.5 | 140 | 205 |
| 3.8 | 43 | 75 | 8 | 75 | 117 | 12.2 | 101 | 151 | 20 | 140 | 205 |
